Industry leader in structural hardware engineering since 1956
Products designed and tested for strength and easy installation
Diverse product line for DIY and residential
- 7 days return and exchange
- Streamlined service, designed for your convenience.
- Your happiness, our mission.
- Quality You Can Count On

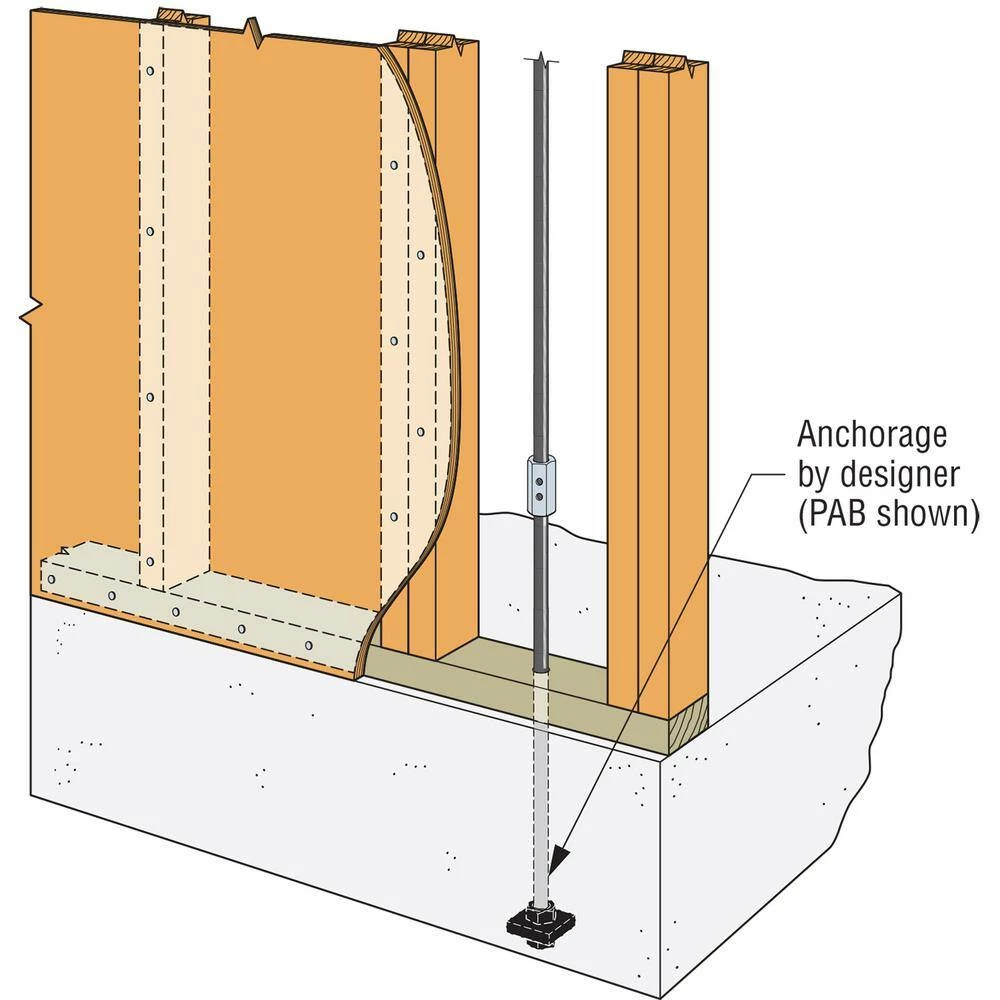

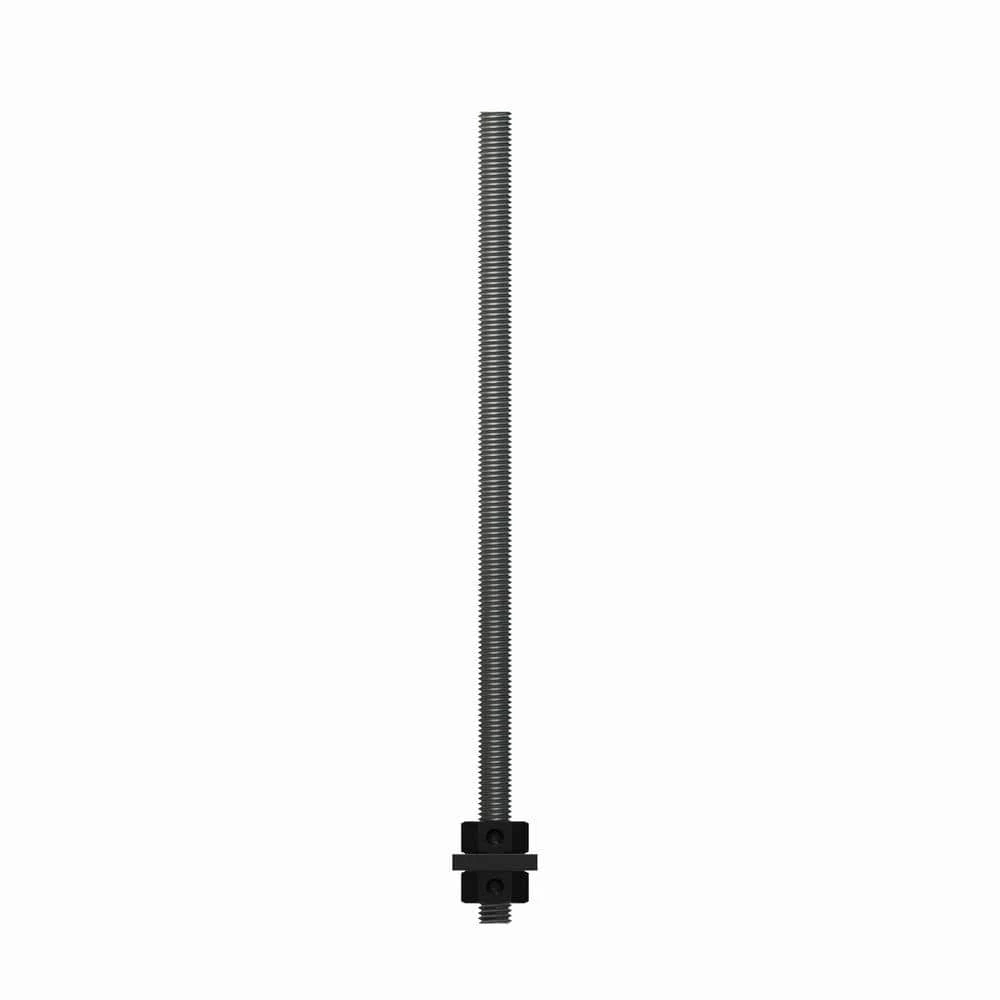

The PAB anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.
- Available in diameters from 1/2-in to 1-1/4-in in and lengths from 12-in to 36-in (in 6-in increments)

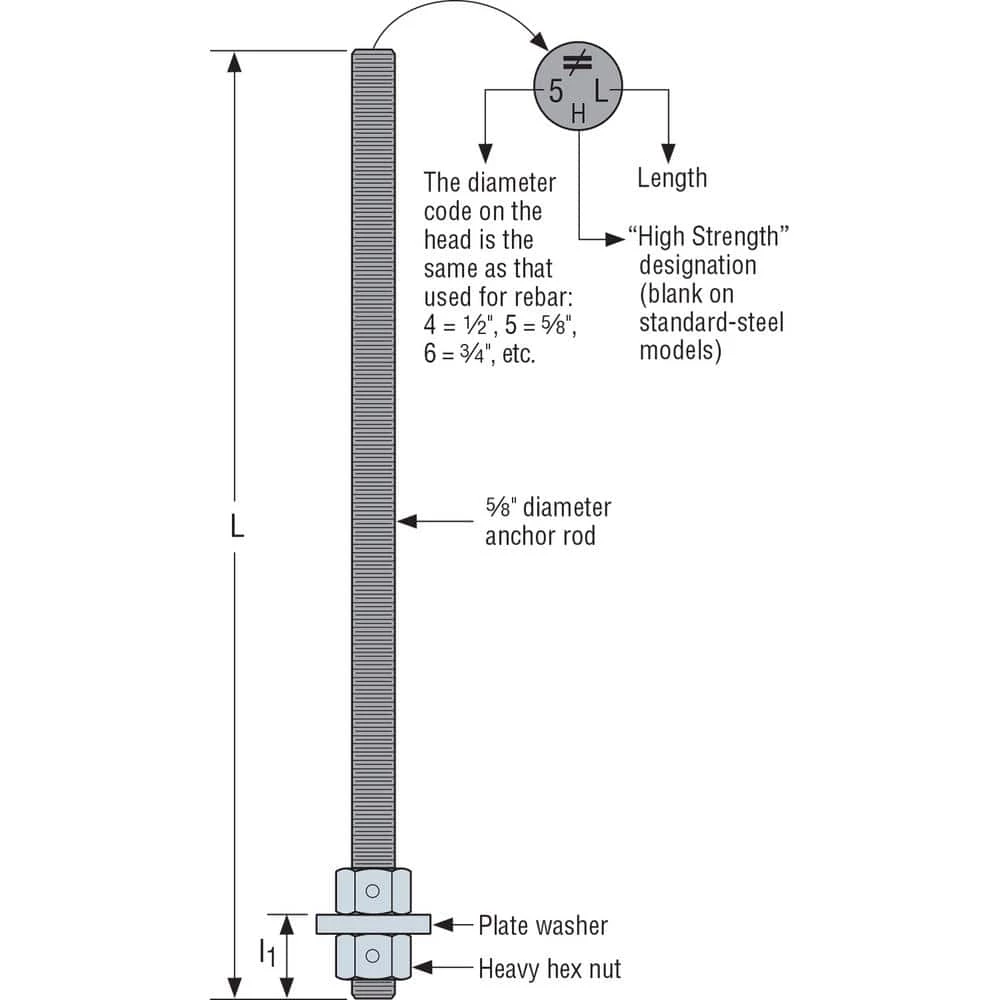

- Head stamp contains the Simpson Strong-Tie “No Equal” sign, diameter designation and “HS” on high-strength rods
- Diameter: 1/2-in
- Length: 12-in
- Material: Steel – ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi
| Fastener Head Style | Hex Nut |
|---|---|
| Package Quantity | 1 |
| Anchor Length (in.) | 12 |
| Anchor Diameter (in.) | 1/2" |
| Manufacturer Warranty | Limited Warranty |
| Returnable | 90-Day |
| Remote Access | No Remote Access |
| Product Weight (lb.) | 0.78 |
| Measurement Standard | SAE |
| Fastener Plating | None |
| Interior/Exterior | Interior |
| Finish Family | Other |
| Finish | none |
| Features | No Additional Features |
| Fastening Base Material | Concrete |
| Fastener/Connector Material | Steel |
| Fastener Type | Anchor Bolts |
| Required Drill Hole Size (in.) | 5 |
