Suitable for monolithic and two-pour concrete applications
Anchor bolt for Simpson Strong-Tie holdowns and shearwalls
Hot-dip galvanization offers extra corrosion resistance
- 7 days return and exchange
- Streamlined service, designed for your convenience.
- Your happiness, our mission.
- Quality You Can Count On

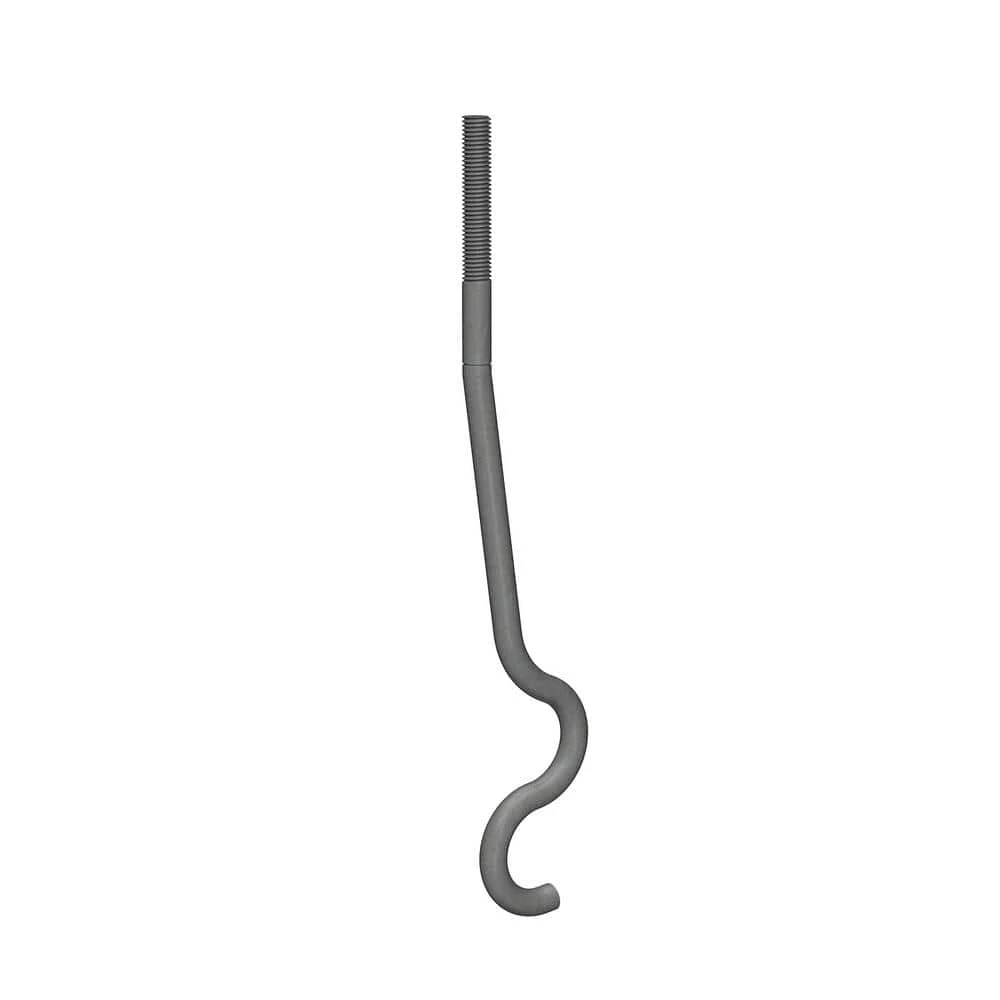

The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie Strong-Wall shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC and IRC.

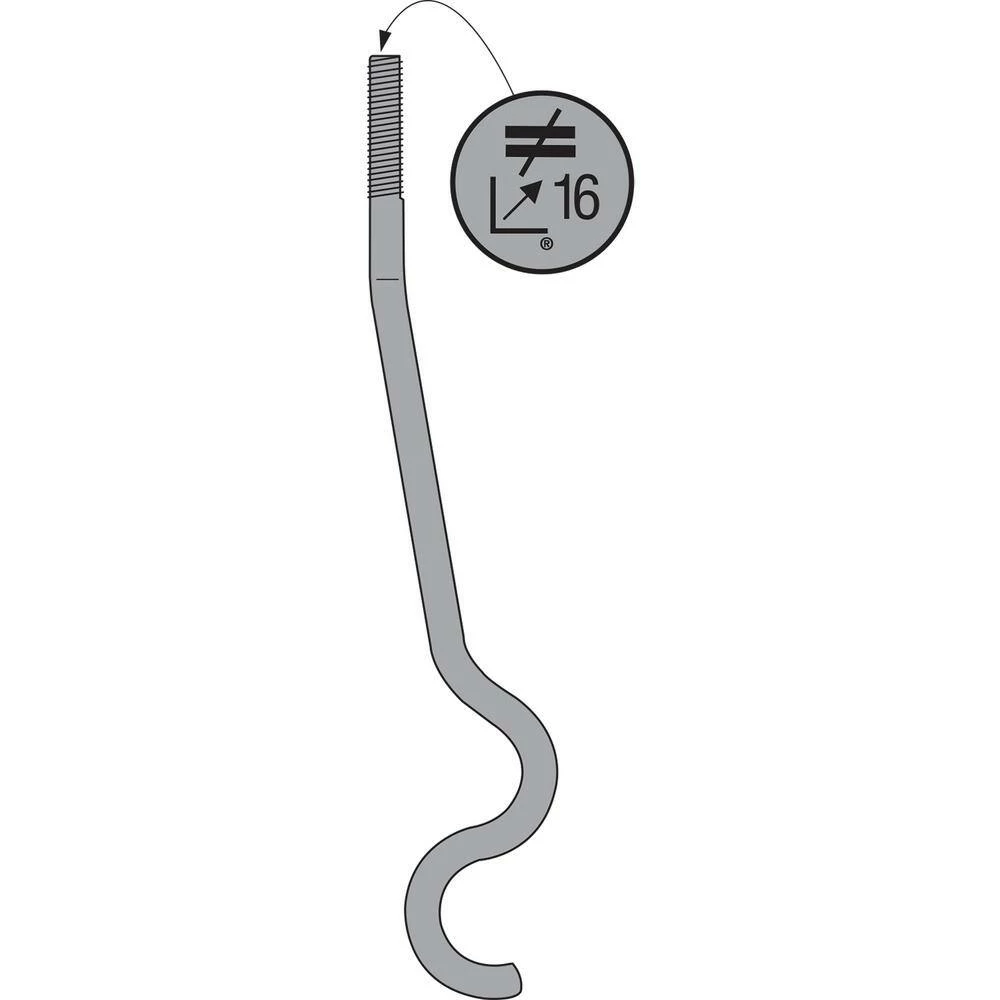

- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity

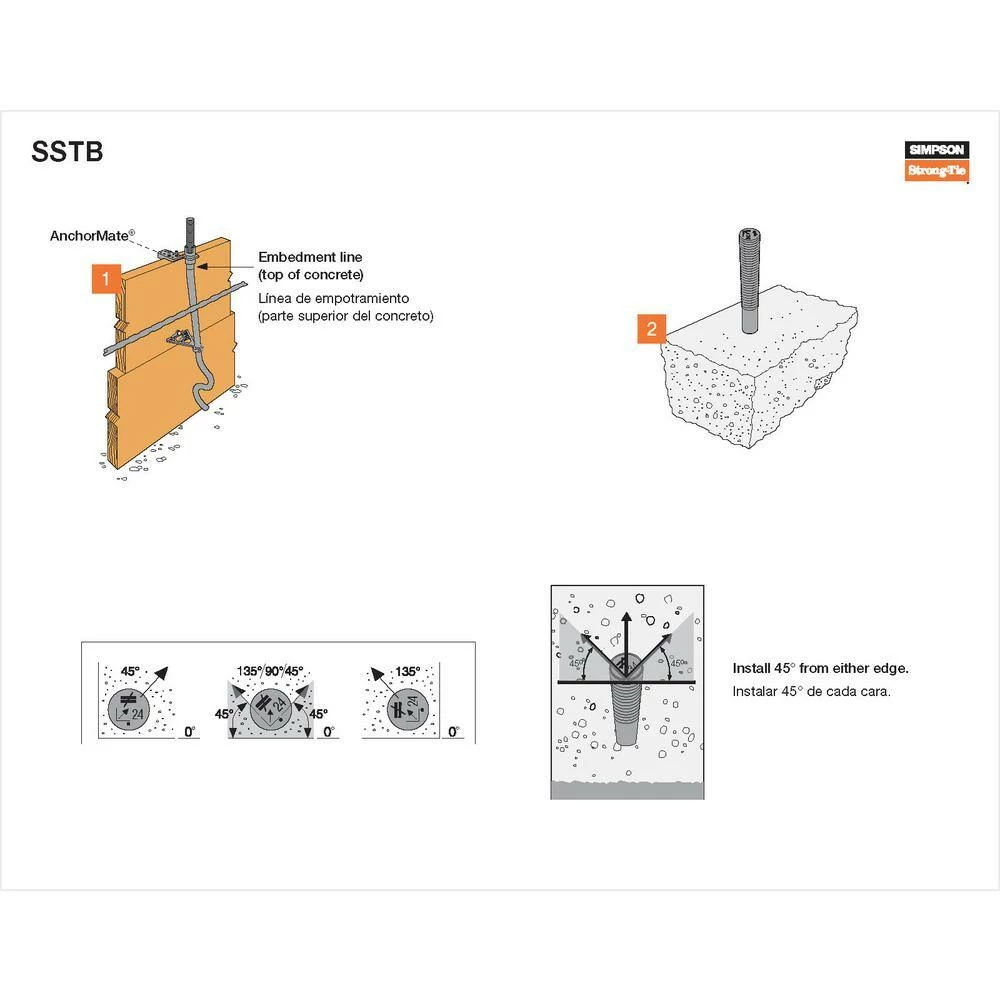

- Stamped embedment line aids installation

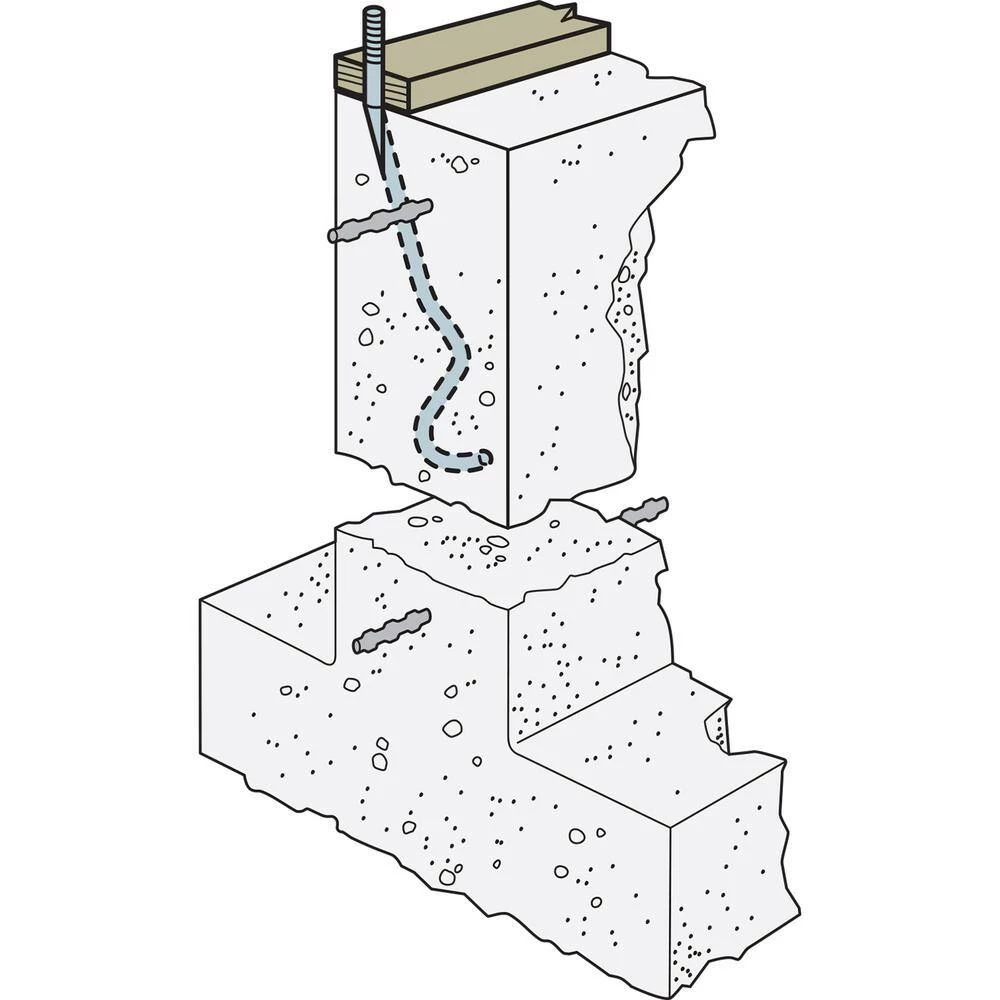

- SSTB is suitable for monolithic and two-pour concrete applications
- Diameter: 5/8 in.
- Length: 17-5/8 in.
- Material: ASTM F-1554, Grade 36
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
- Nuts and washers for holdown attachment are not supplied with the SSTB; on HDG SSTB anchors, chase the threads to use standard nuts or couplers
| Color Family | Steel |
|---|---|
| Interior/Exterior | Exterior,Interior |
| Fastener Length (in.) | 17.56 |
| Anchor Length (in.) | 17.56 |
| Anchor Diameter (in.) | 5/8" |
| Manufacturer Warranty | Limited Warranty |
| Product Weight (lb.) | 1.33 lb |
| Package Quantity | 1 |
| Measurement Standard | SAE |
| Included | No Additional Items Included |
| Fastener Head Style | No Head |
| Finish Family | Galvanized |
| Finish | Hot-Dip Galvanized |
| Features | No Additional Features |
| Fastening Base Material | Concrete |
| Fastener/Connector Material | Steel |
| Fastener Type | Anchor Bolts |
| Fastener Plating | Hot Galvanized |
| Required Drill Hole Size (in.) | 0 |
