Simpson Strong-Tie Titen HD 3/4 in. x 10 in. Mechanically Galvanized Heavy-Duty Screw Anchor (5-Pack)

The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.

• Qualified for static and seismic loading conditions
• Thread design undercuts to efficiently transfer the load to the base material

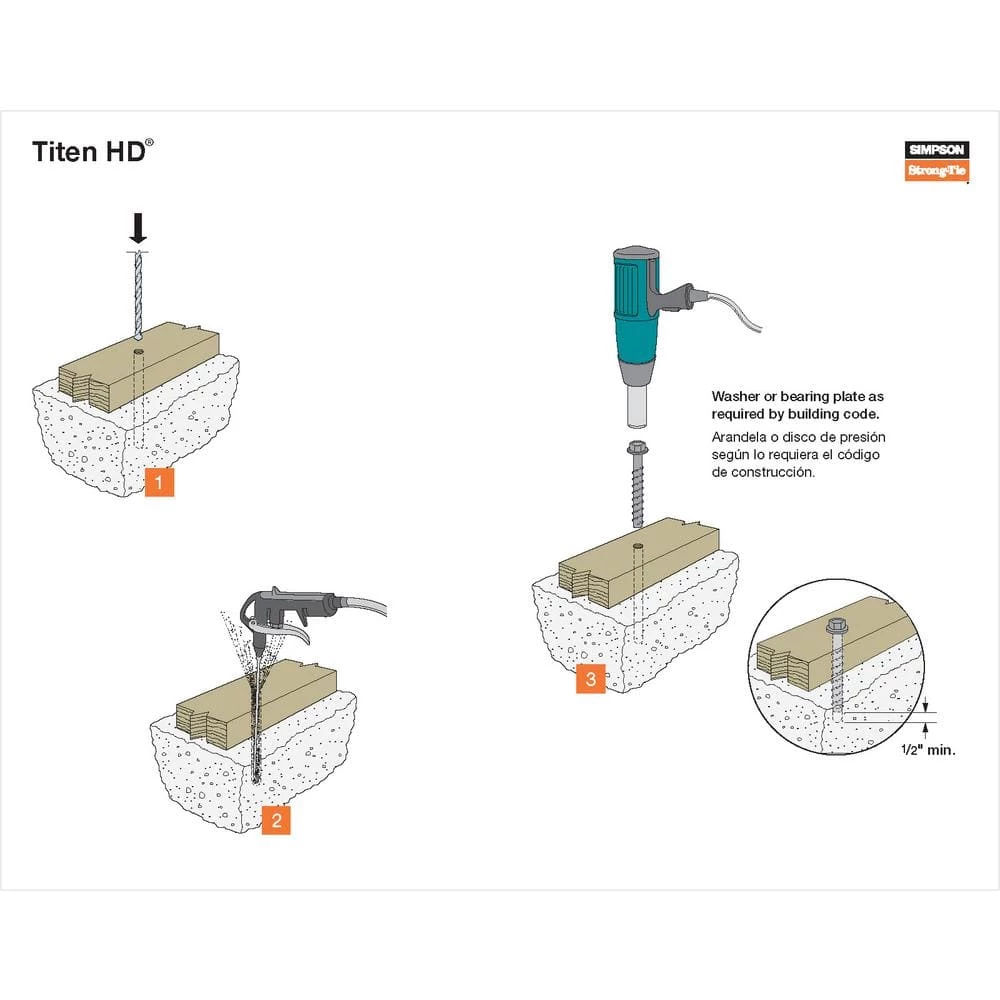

• No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
• Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors

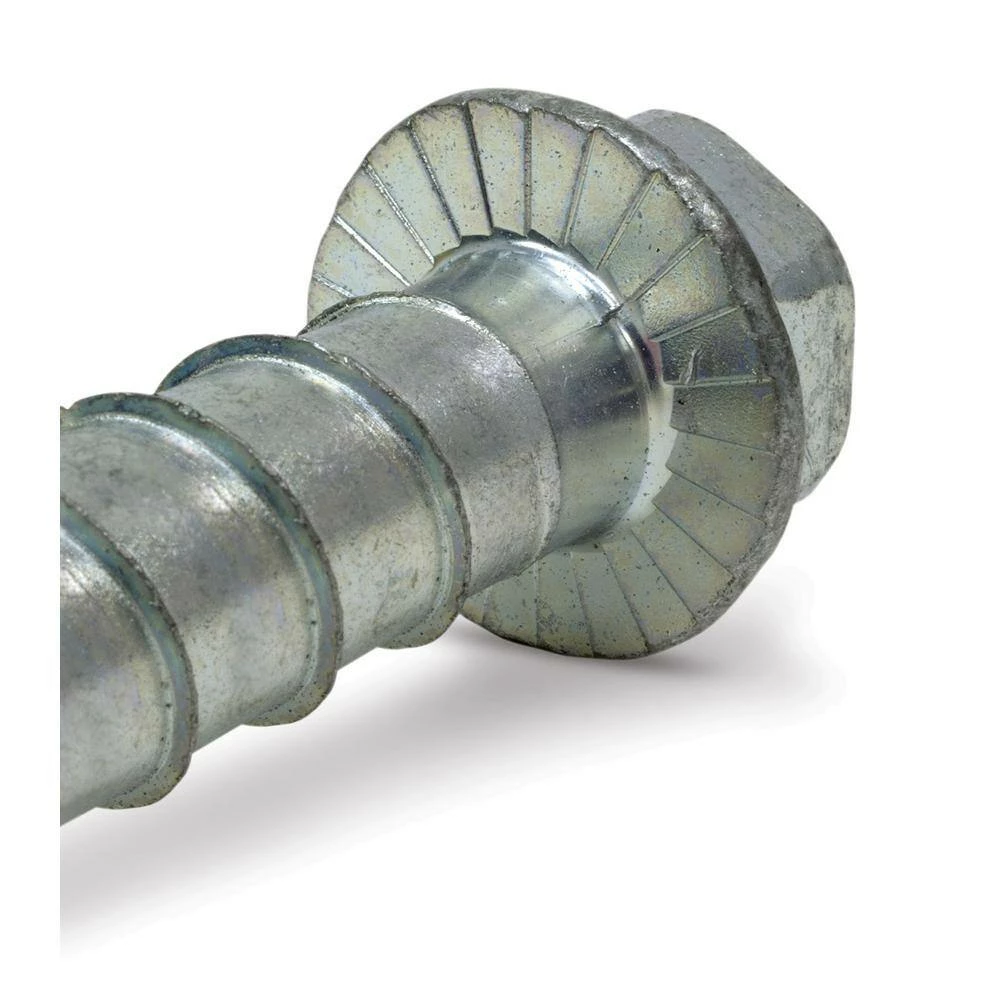

• Hex-washer head requires no separate washer and provides a clean installed appearance

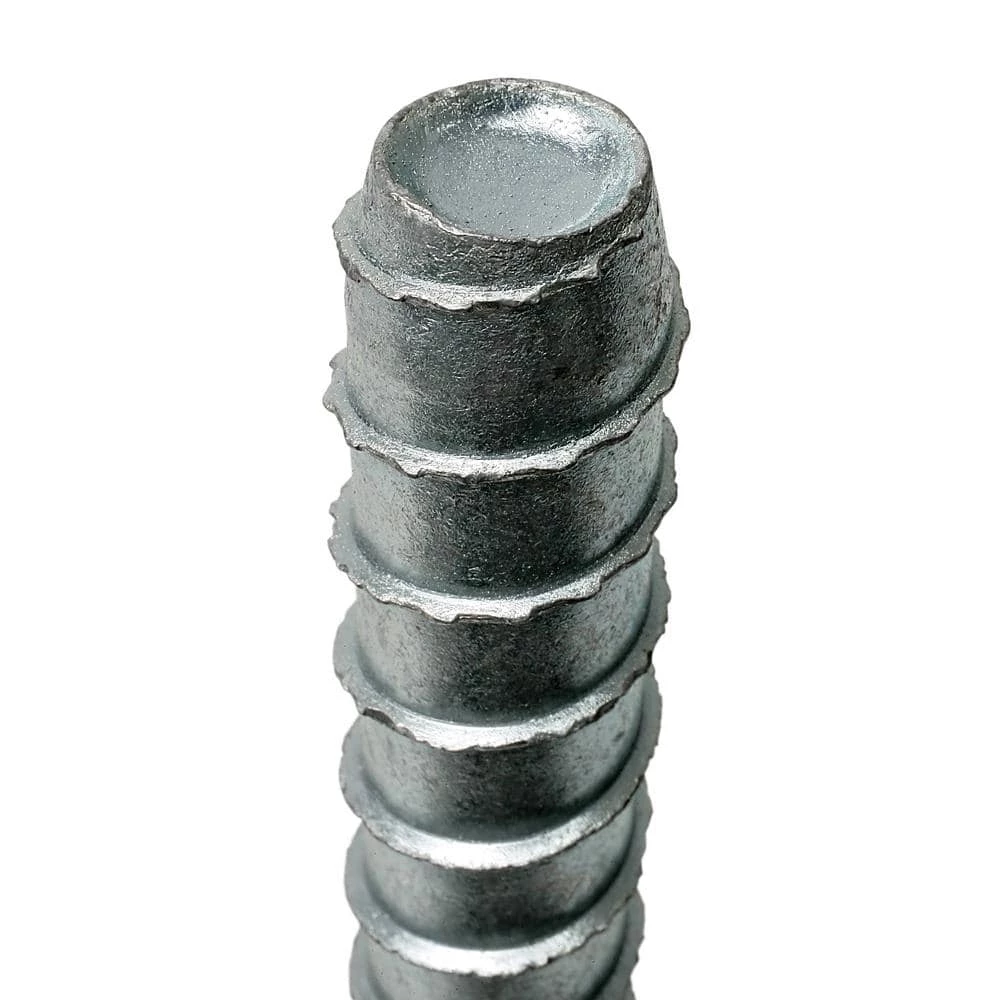

• Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility

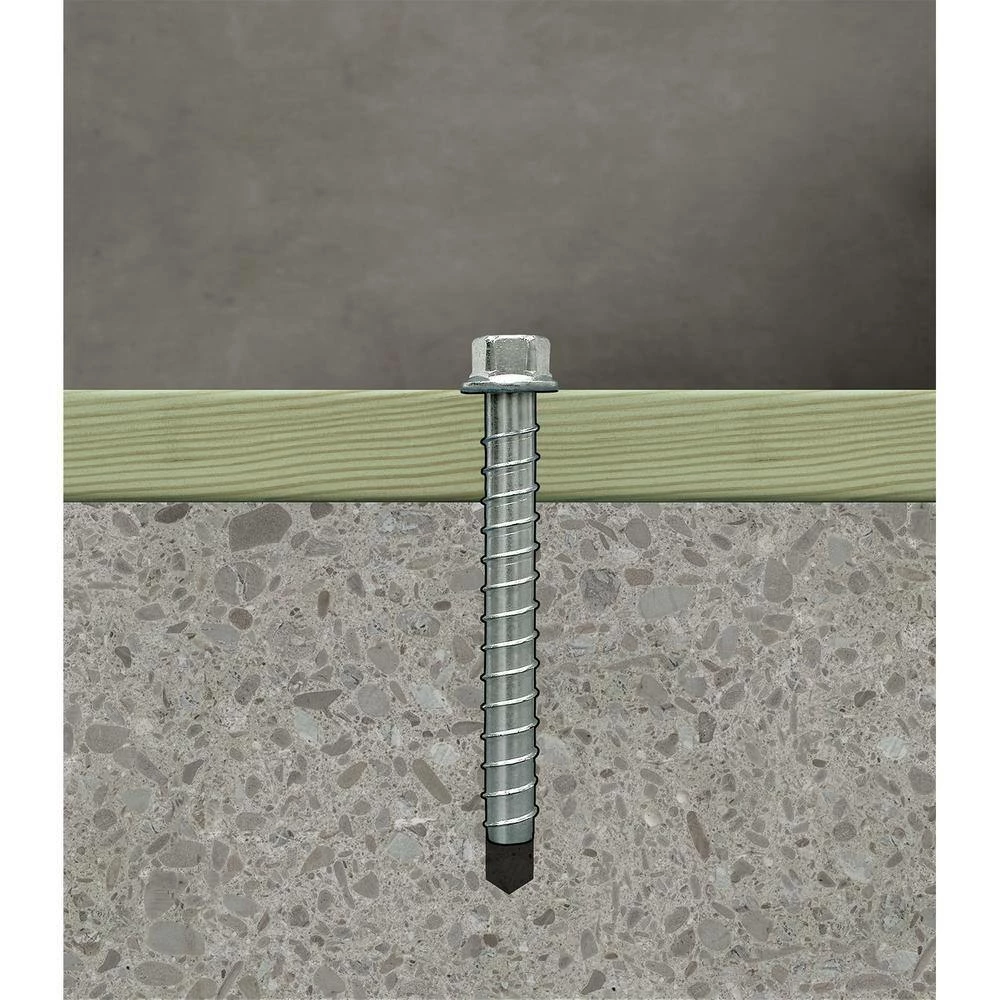

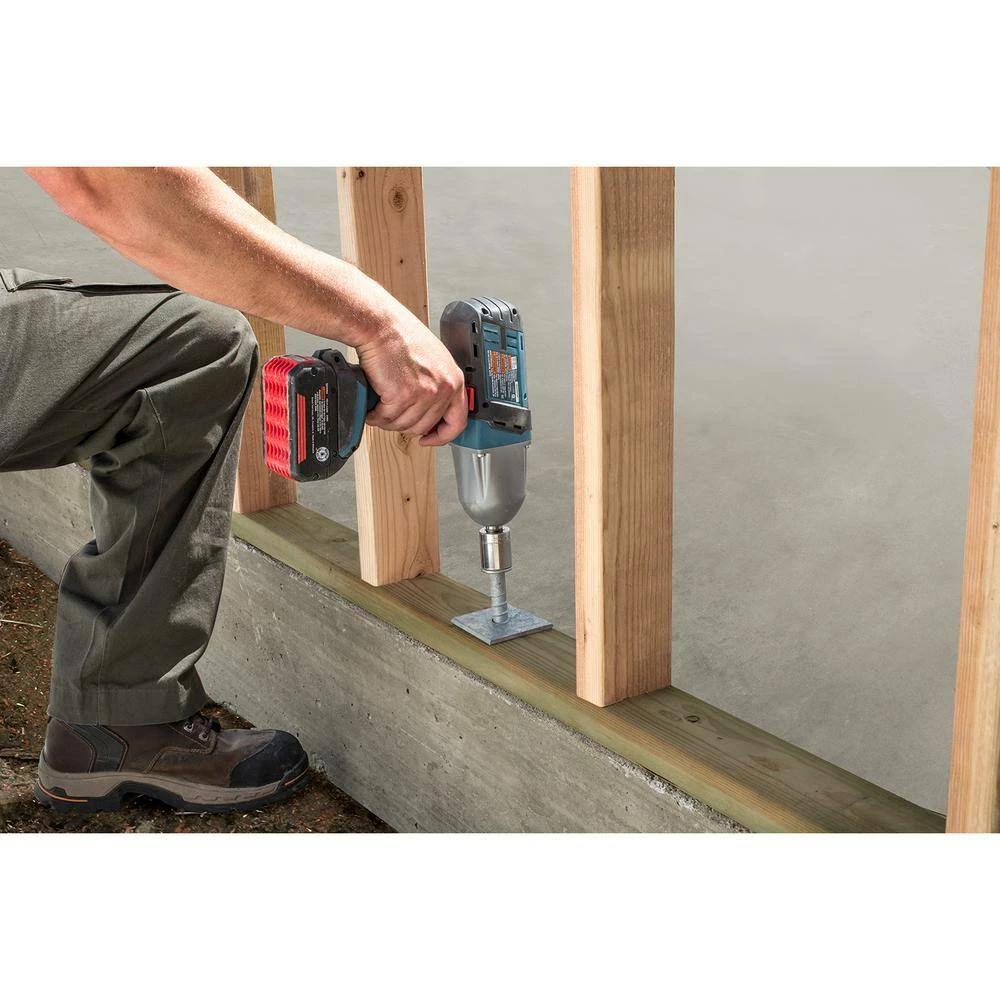

• Mechanical galvanizing meets ASTM B695, Class 65, Type 1, intended for some pressure-treated wood sill plate applications; not for use in other corrosive or outdoor environments
• Size: 3/4 in. x 10 in.
• Caution: Use a Titen HD screw anchor one time only – installing the anchor multiple times may result in excessive thread wear and reduce load capacity
